EDXtreme Dynamometer


Go Heavy-Duty with the Dillon EDXtreme Dynamometer

When you need a truly accurate, versatile, and sturdy force measurement tool, choose the Dillon EDXtreme dynamometer. This modular dynamometer can be utilized as a hanging scale or the hub of a complex weighing system. It even enables you to control multiple dynamometers in one workspace with a single wireless remote. Key features of the EDXtreme include:

  • Extended Battery Life
  • 300’ - 600’ Radio Communication Distance
  • High-Speed Peak Capture
  • Brilliant Backlighting
  • Date and Time Settings
  • Continuous Data Storage
  • Re-Calibration Reminder
  • Multiple Communicators
  • Faster RF Connectivity
  • Optional Communicator


Why Industries Trust EDXtreme

The EDXtreme dynamometer is specially built to withstand heavy-duty applications. It is also highly user-friendly, which makes operation both dependable and hassle-free for all industries. Other standout features include:

  • Corrosion Resistance: Dillon constructs high-capacity models with nickel-plated alloy steel. Lower-capacity models contain anodized, aircraft-grade aluminum.

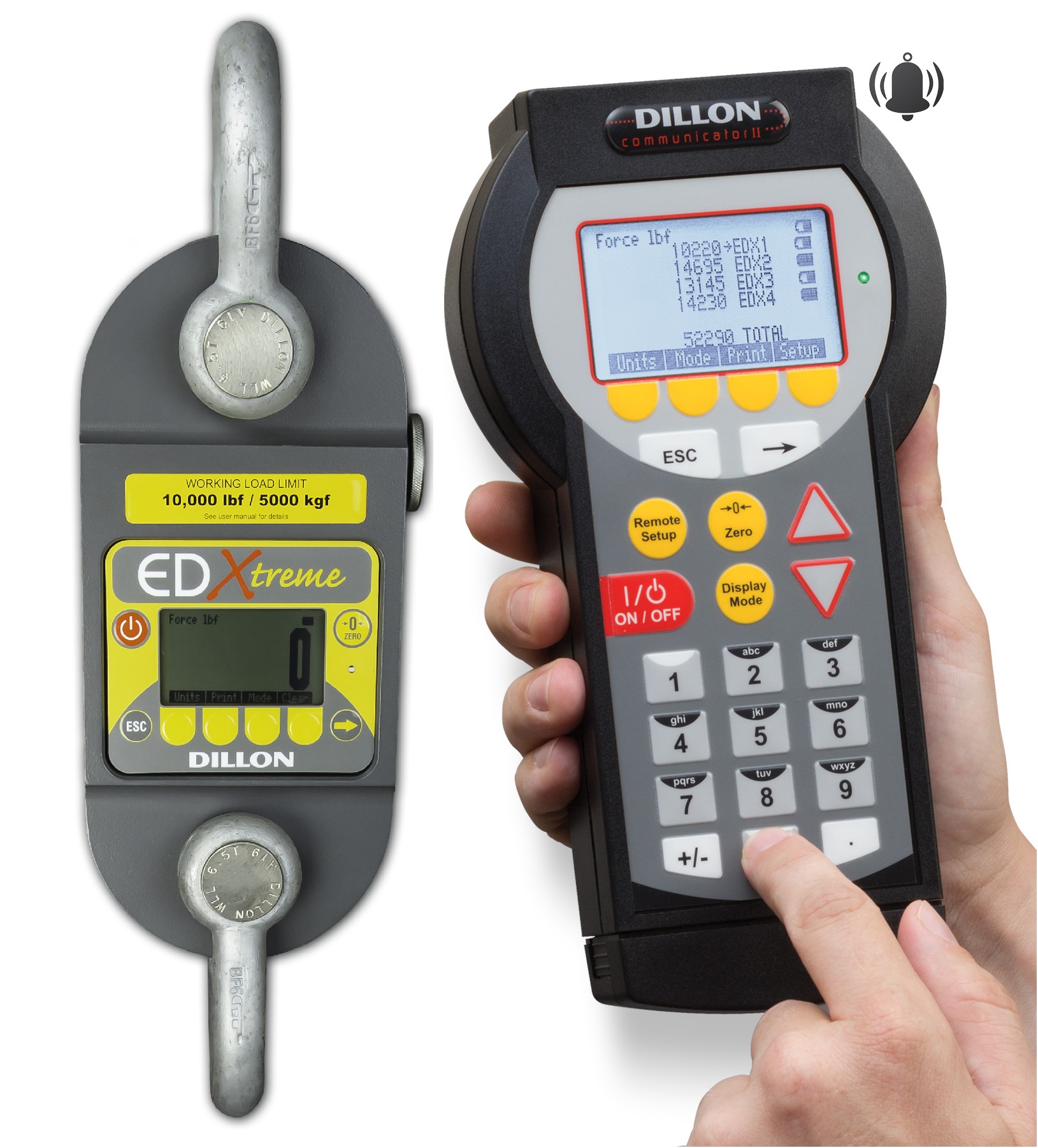

edxtreme dynamometer & dillon communicator hand alarm
  • 5:1 Factor of Safety: Rigorous computer testing confirms the EDXtreme dynamometer is built to last. It is low-stress and has a long product life.
  • Retained Hardware: You can permanently attach centering spacers if needed to minimize fumbling during high-capacity rigging.
  • NEMA 4X/IP55: This force measurement tool is compatible with any job site thanks to built-in protection against dirt, dust, non-corrosive liquids, and water.
  • Extreme Accuracy of 0.1%: The EDXtreme dynamometer is carefully designed to deliver accurate, repeatable ratings. It is finely tuned with an enhanced high-resolution mode of 1 part in 5000.
  • Exclusive SOFTKEY Interface: It comes enabled for fast set-up, simple operation, and the capability of reading in lbf, kgf and Newtons. Programmable functions can correct for gravitational variations and allow for custom units of measurement.
  • Wide-Angle LCD: No more straining to read! This tool offers improved readability over a wider viewing angle and is available with backlighting for low-light conditions.
  • Battery Operation: Dillon EDXtreme dynamometers use two C-cell batteries for accessibility and quick replacement.
  • Wireless Communication: Its communication function is powered with a 2.4Ghz radio frequency, allowing it to maintain a stable connection even in unstable conditions.

Resources

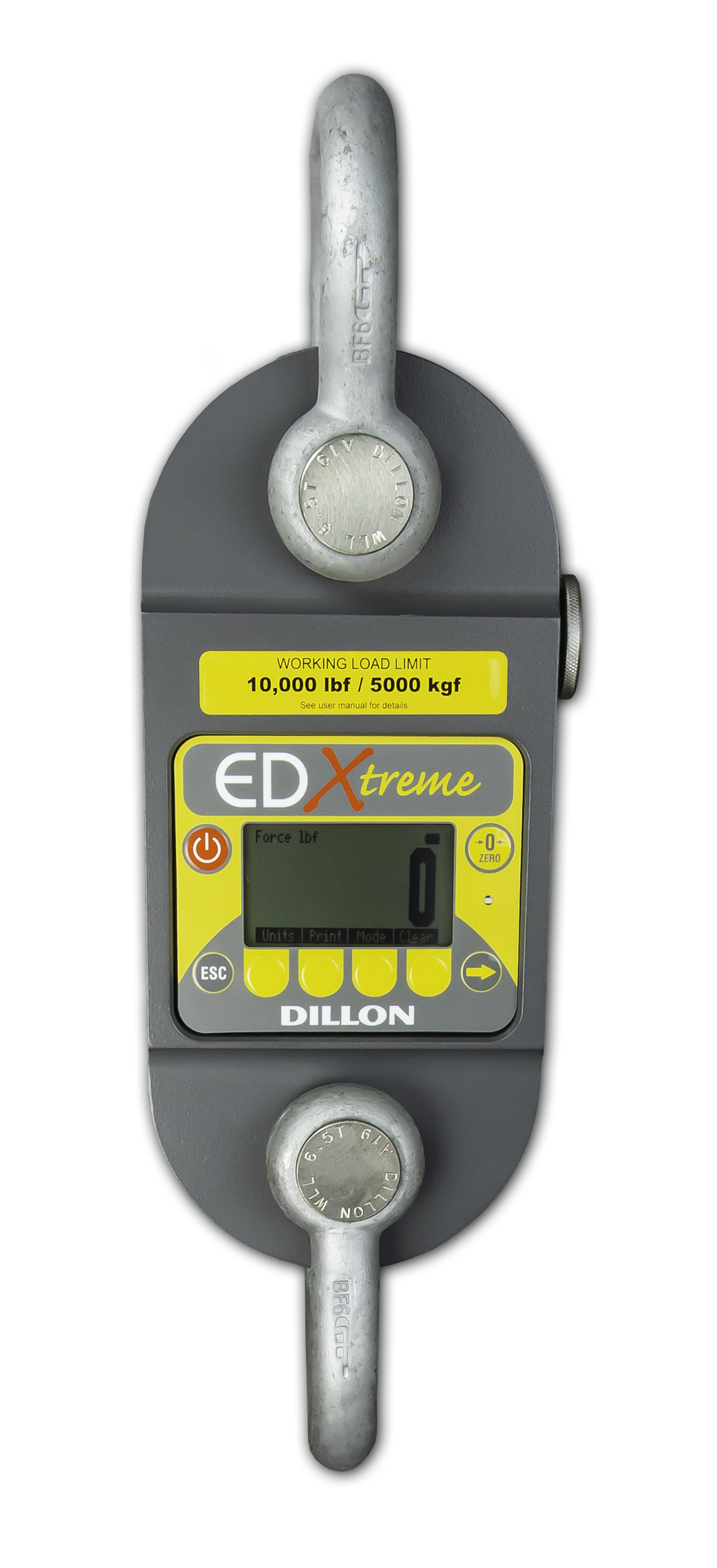

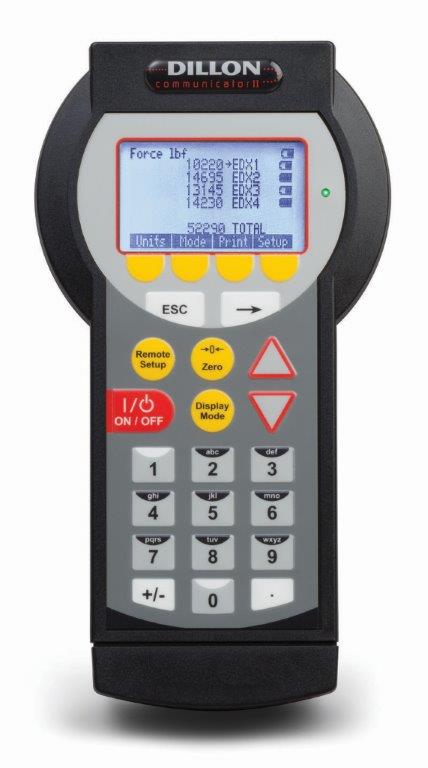

EDXtreme Dynamometer EDX10t - front Dillon EDXtreme Dynamometer EDX10t - back Dillon Communicator II Hand Alarm
Dynamometer Brochure Dynamometer Price List Communicator Price List Communicator Alarm  Dynamometer Specifications
